Disassembling Lawn and Garden Bosch UniversalGardenTidy 3000 switch
ID: 174503
Description: This is how to fix the switch when it won't...
Steps:

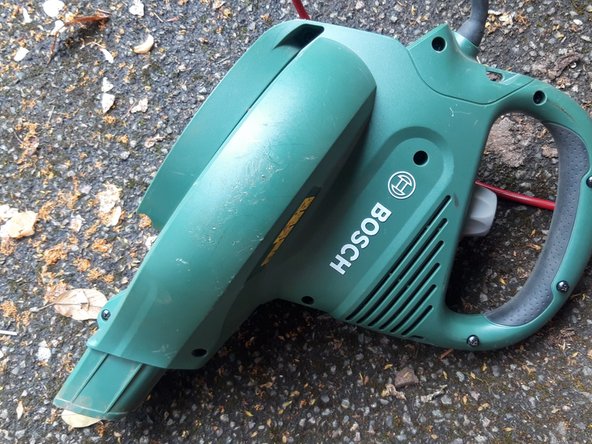

- If you have this item and the turn switch resists turning on, this is because there is too much friction where the turn switch rubs the safety control micro-switch. You need to detach all the fittings to be left with the base, then remove the 11 screws (all the same size) keep them safe.

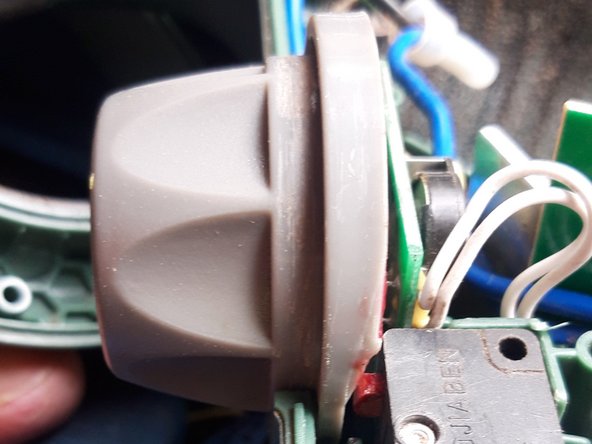

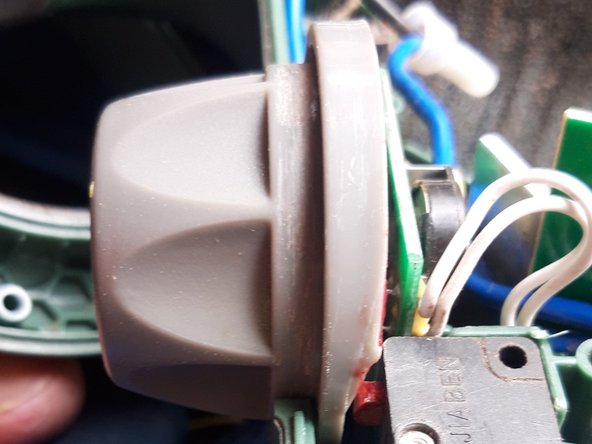

- Once you have separated the two halves, you will be able to see that the knob on the switch has a cam that, when you turn it, depresses the micro-switch. In this photo the bottom on the micro-switch is red since I have already put red grease on it to reduce the friction.

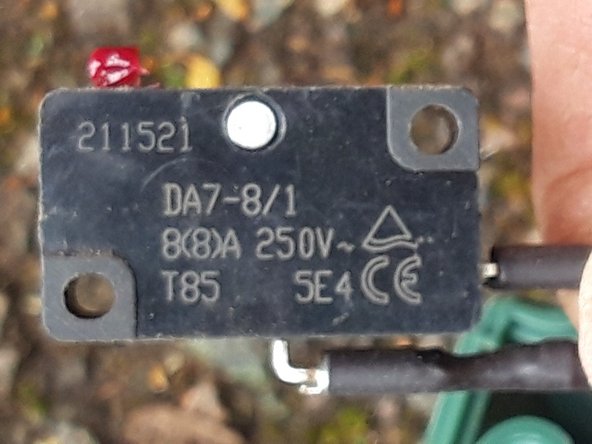

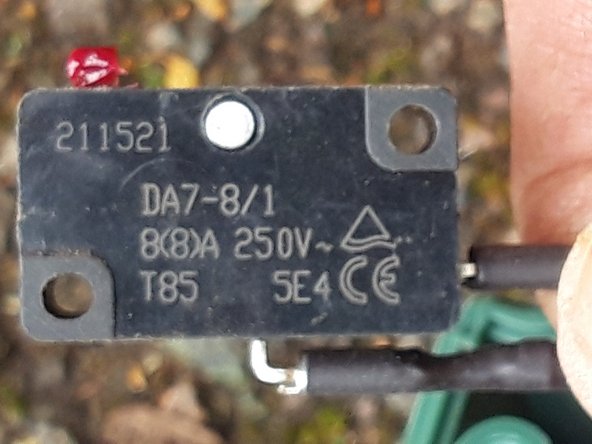

- This is the micro-switch from side on. You can see the red grease that I have put on it.
