2010-2015 Hyundai Elantra Head Lights Replacement

ID: 178529

Description: Replacing a headlight on a 2015 Hyundai Elantra...

Steps:

1. Before you begin, disconnect the car battery.

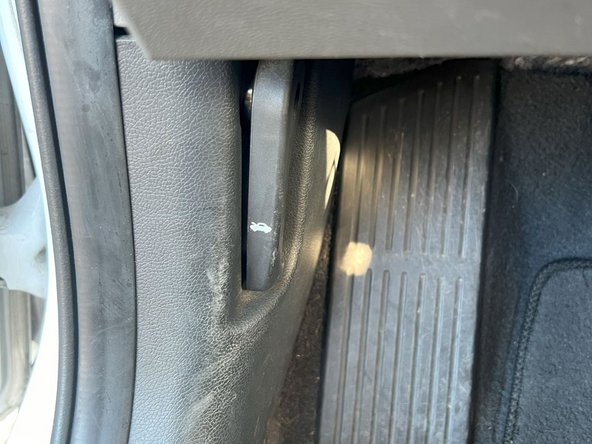

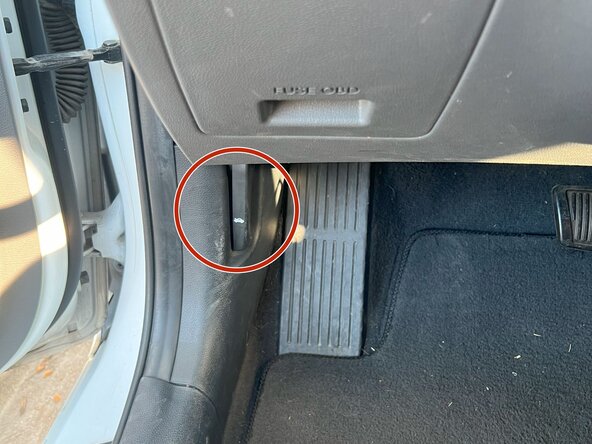

2. Locate the hood release lever inside the cabin near the driver’s side footwell. Pull the lever to release the hood.

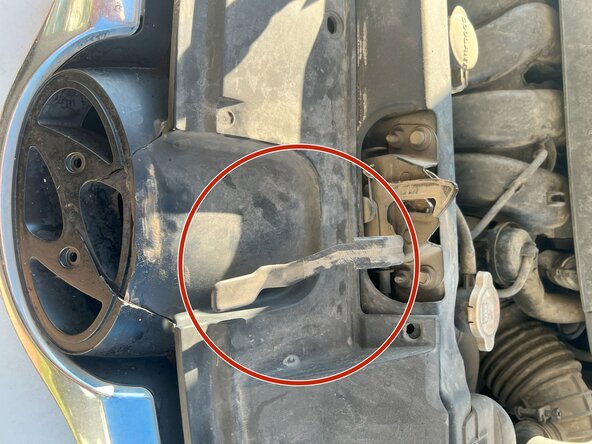

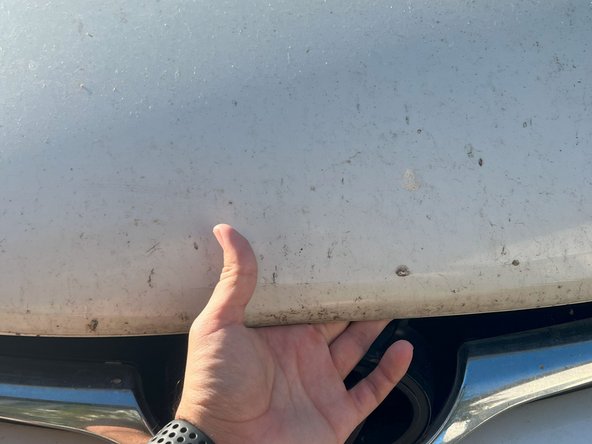

3. Slide the hood latch above the Hyundai emblem at the front of the vehicle to unlock the hood.

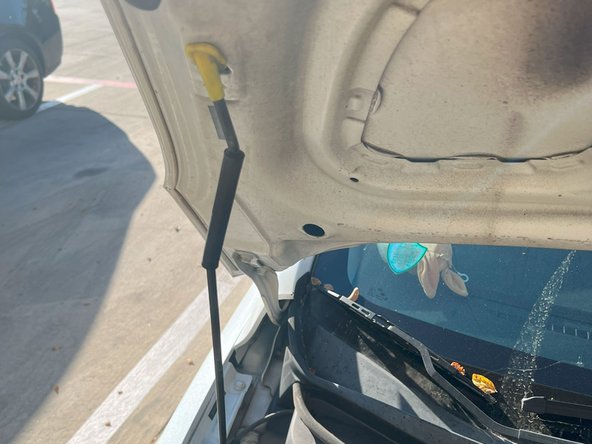

4. Lift the hood and secure it with the hood prop.

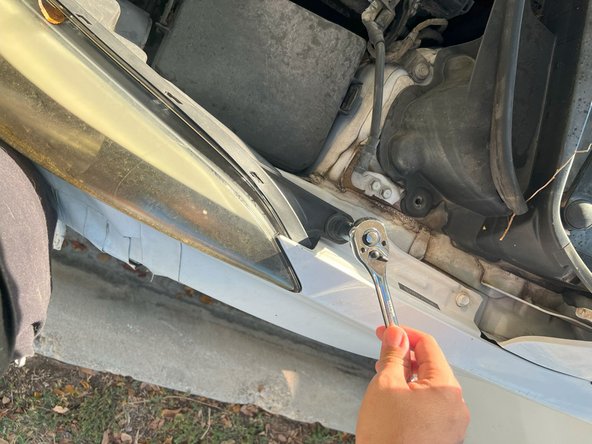

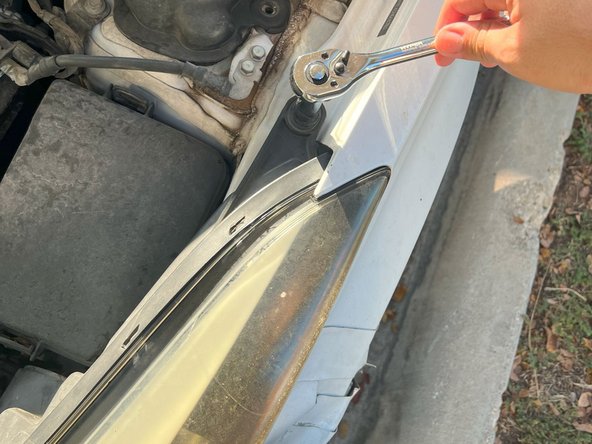

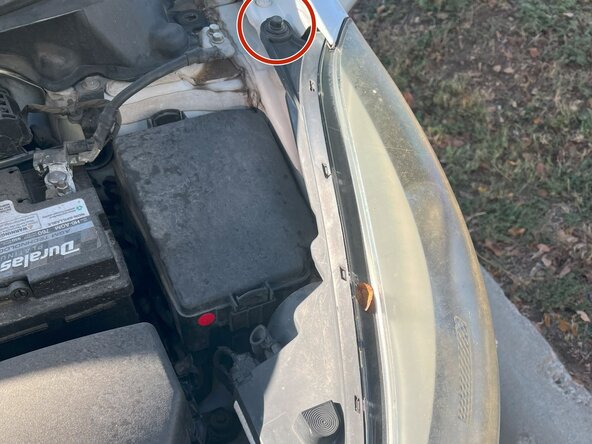

5. Use a 12 mm wrench to remove the single 12 mm bolt.

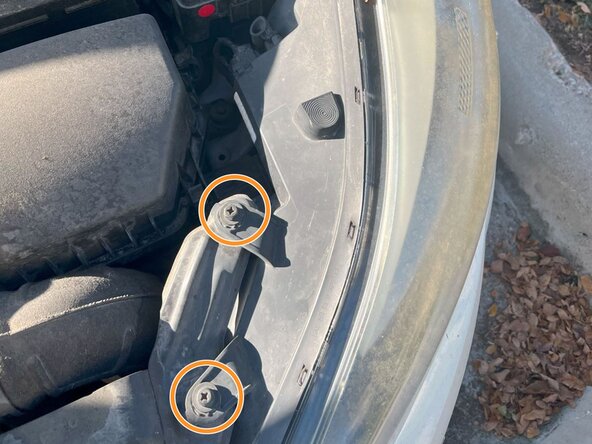

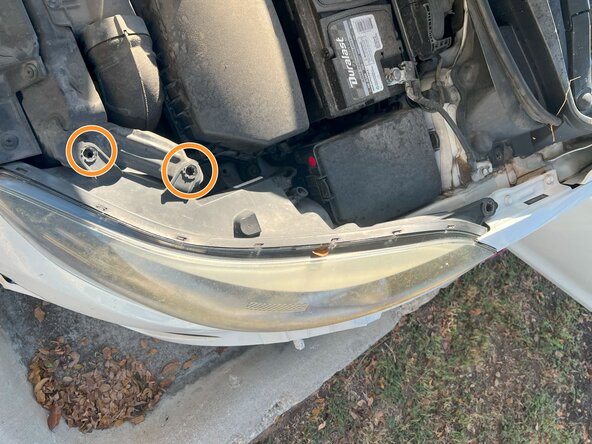

6. Use a Phillips #2 to remove two 15.0 mm screws securing the headlight assembly.

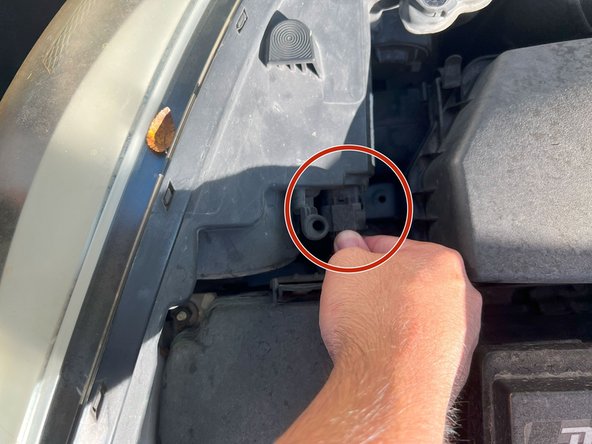

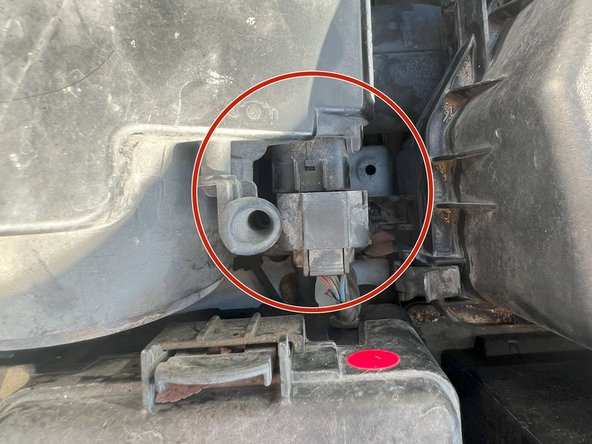

7. Disconnect the power cable from the back of the headlight.

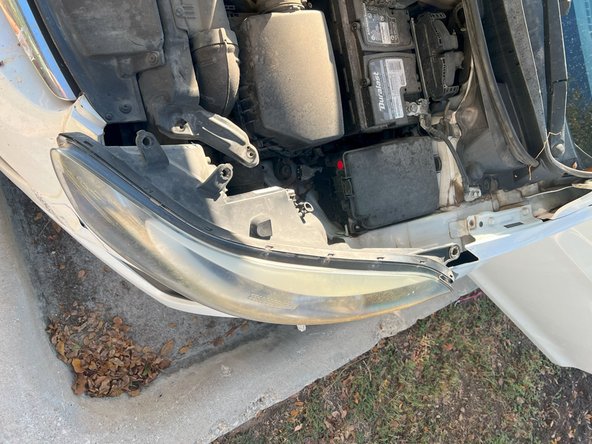

8. Apply gentle pressure to pull the headlight assembly out from the chassis.

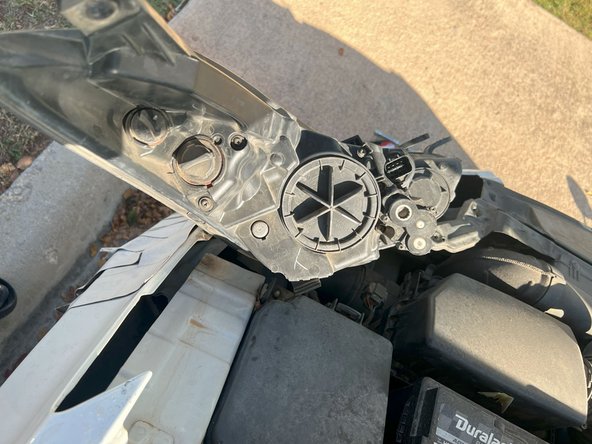

9. Position the headlight assembly securely.

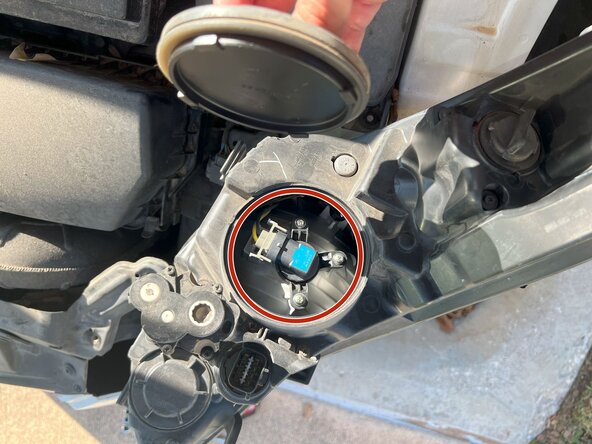

10. Remove the cover protecting the light bulb.

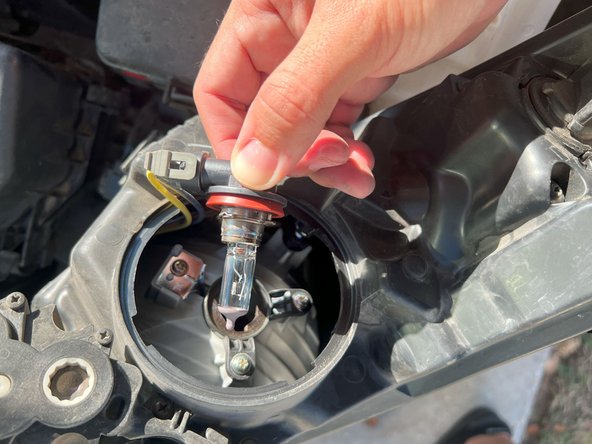

11. Twist the bulb counterclockwise to release it from the socket.

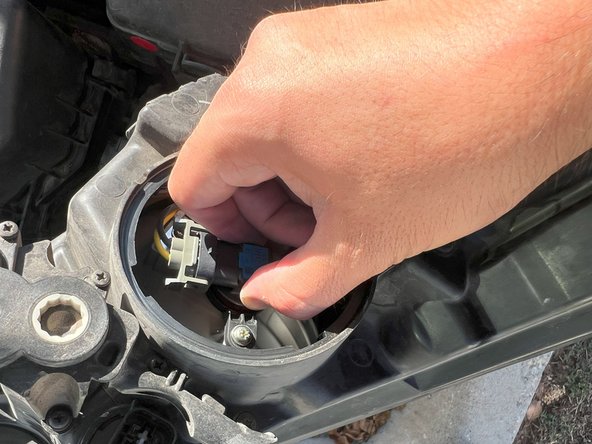

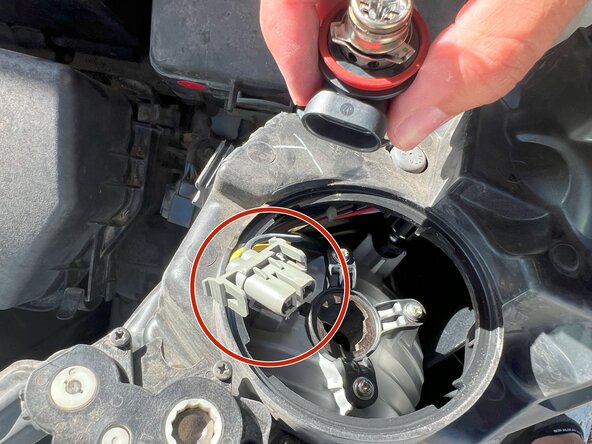

12. Disconnect the old bulb from the power connector, avoiding contact with the bulb glass.
13. Insert the new bulb into the connector, ensuring a secure fit before placing it back into the headlight assembly.

14. Align the headlight assembly with the chassis and reconnect the power connector.
15. Reinsert and tighten the screws and bolt to secure the headlight in place.
