FLUKE 376FC True-RMS Clamp Meter Battery Replacement

ID: 180975

Description: This is a quick and simple guide to replace the...

Steps:

1. Make sure the meter is in the Off position

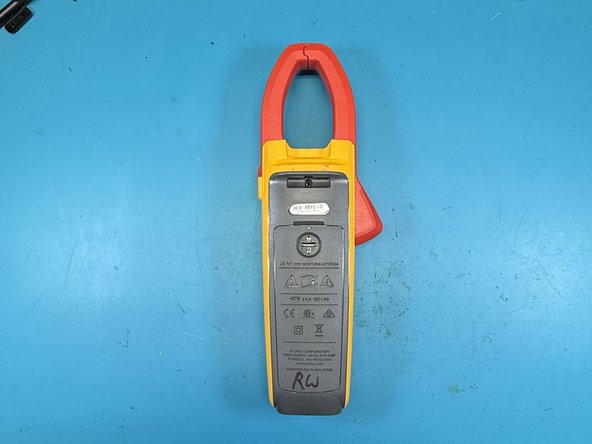

2. Turn the meter over and place it on a surface that won't scratch the display face.

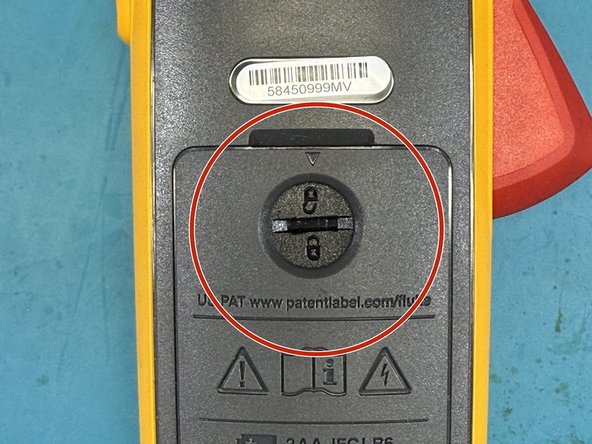

3. Using the flat blade screwdriver, rotate the battery locking key from the locked to the unlocked position. Be careful not to use a lot of force as the plastic can be easily damaged by the metal screwdriver.
4. The unlucky will show up on the top by the small arrow in the case.

5. Use your finger to pull open the battery compartment cover.

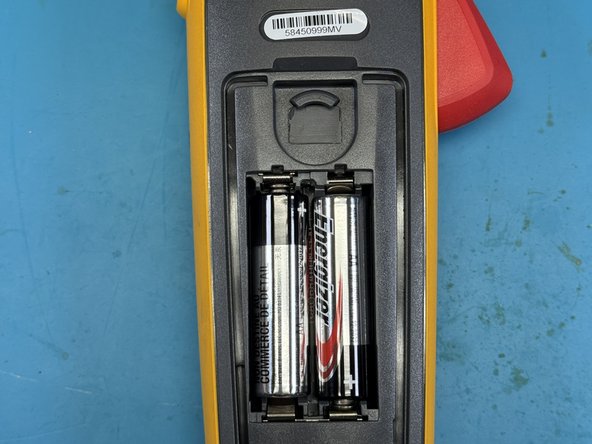

6. Replace your AA batteries.
7. Use the reverse instructions to reassemble your meter.
