Unplugging Wires From SGIN X15S Motherboard

ID: 185477

Description:

Steps:

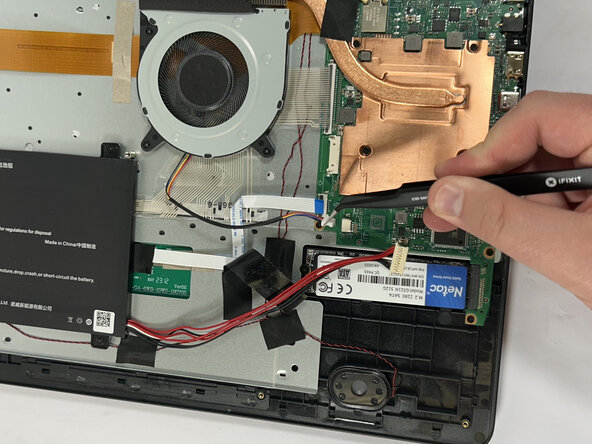

1. Remove the eight top and middle 7.3 mm screws using the Phillips #0 screwdriver.
2. Remove the six bottom and side 4.4 mm screws using the Phillips #0 screwdriver.

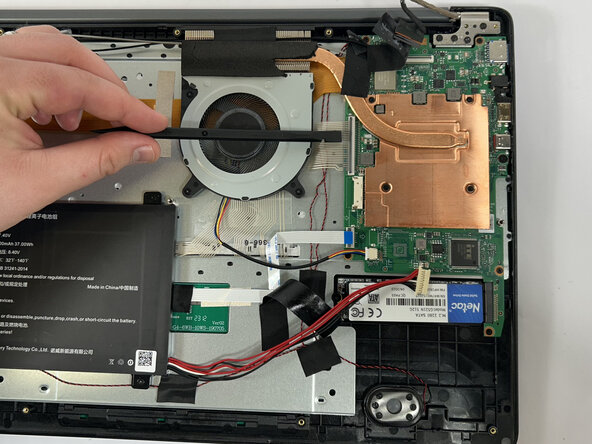

3. Use the nylon spudger to gently pry a bit of the back panel open. With the opening pick, go all the way around until the back panel is loose.

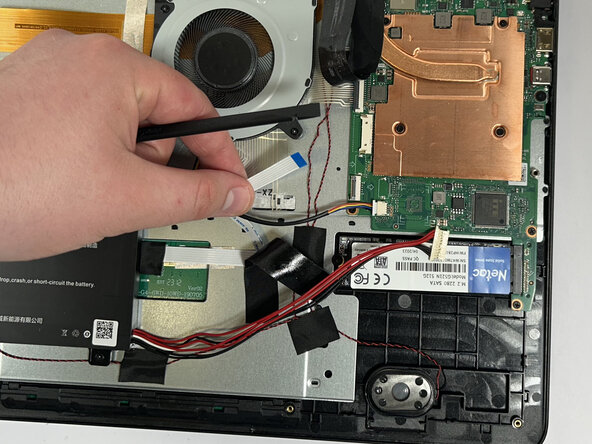

4. Pull the back panel off the laptop.

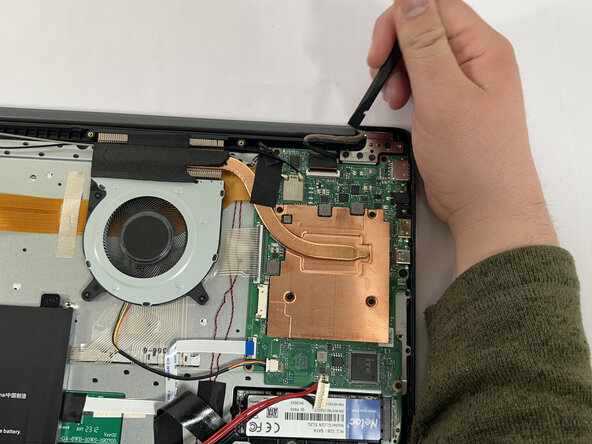

5. Using the nylon spudger, unclip the clip holding the touchpad cable down.
6. Disconnect the touchpad cable.

7. Using the nylon spudger, unclip the clip holding the keyboard ribbon cable in place.
8. Disconnect the keyboard ribbon cable.

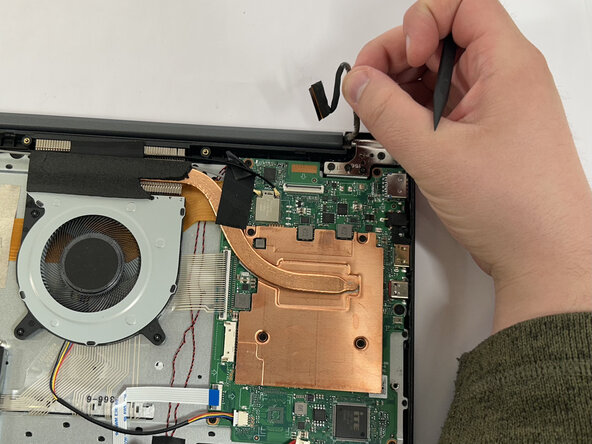

9. Using the nylon spudger, unclip the clip holding the screen cable in place.

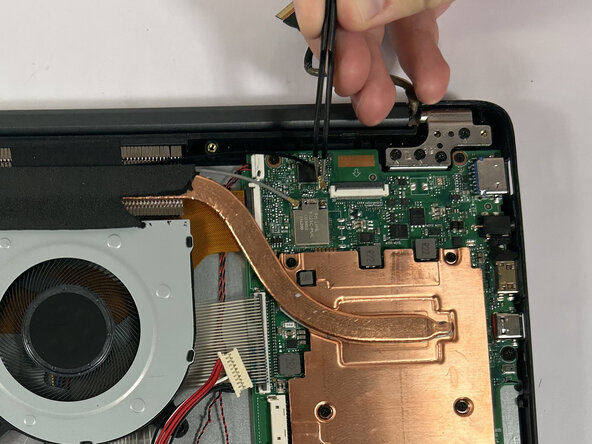

10. Disconnect the screen cable from the motherboard.

11. Using the tweezers, grab the wire connector.
12. When removing connectors, be sure to grip the edges of the wire connector and not the wires themselves.
13. With the tweezers in place, push away from the motherboard to disconnect the wire.

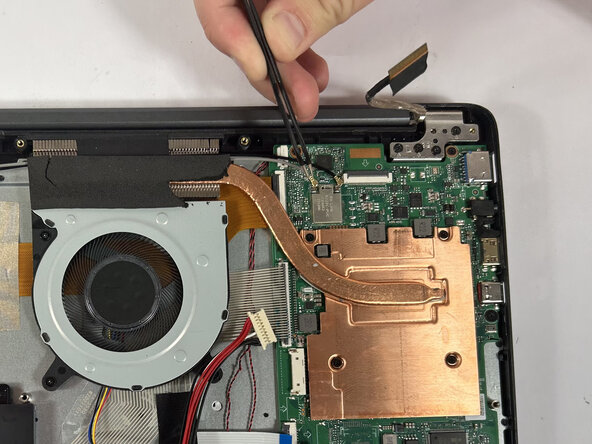

14. Using the angled tweezers, firmly grip the black Wi-Fi cable.
15. With a firm grip, pull the black Wi-Fi cable off the motherboard.
16. Do the same to the grey cable.
