Shimano STI brake/shift lever teardown

ID: 194997

Description: The brake lever was disassembled first. The...

Steps:

  1. Insert instructions here.
    2. Step image Step image
  2. Remove the lower plastic cover to access the mechanism.
    3. Step image

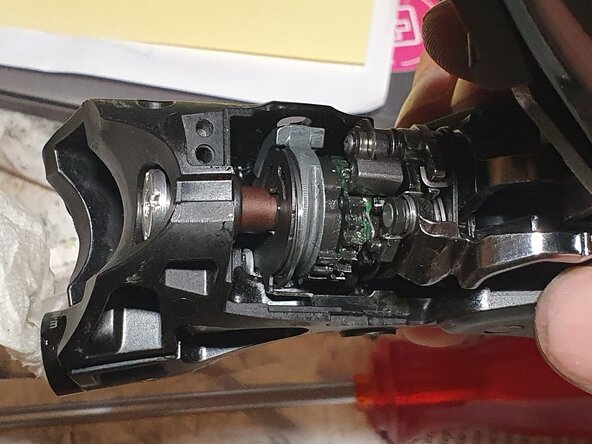

  3. Carefully push the aluminum locking pin of the central fixing screw inward and out of the plastic handle using a thin tool (e.g., 1.5mm hex key).
    4. Step image Step image
  4. The central mounting screw can now be unscrewed. Since it is not very tight, it can be gripped and turned with needle nose pliers.
    5. Step image Step image
