Sony Bravia KDL-32BX300 Opening Procedure

ID: 195175

Description:

Steps:

  1. Lay the TV down on a flat surface

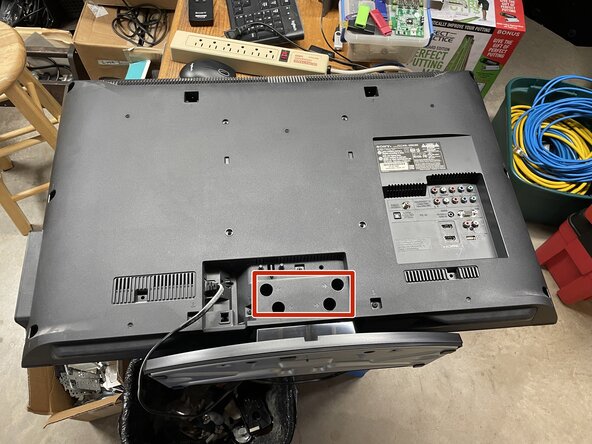

  2. Use a Phillips Screwdriver to remove the 4 screws holding the stand.
  3. Pull the stand away from the TV to remove it.
    4. Step image Step image

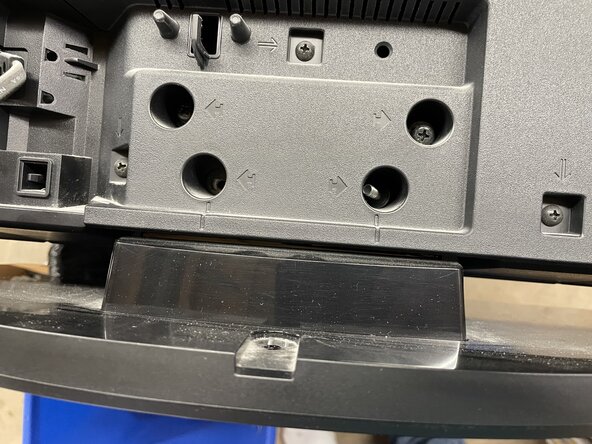

  4. Remove all screws holding the back panel on, including the screw near the RCA audio out connector
    5. Step image

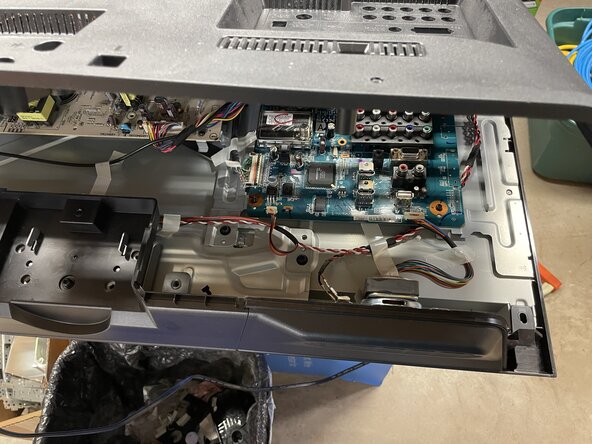

  5. Carefully lift the back panel off from the bottom. There are some plastic tabs at the top of the back panel where it meets the front bezel.
    6. Step image

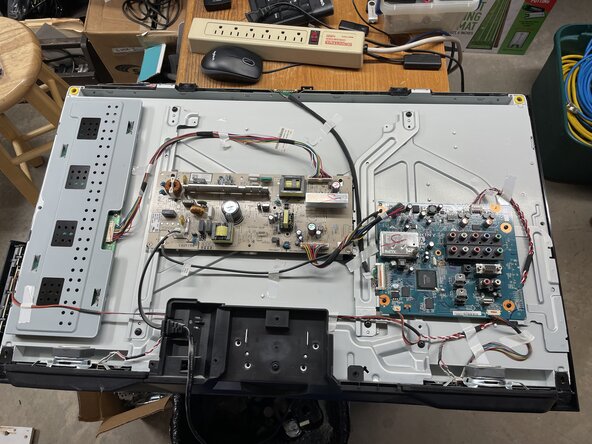

  6. The TV is now open, allowing access to the main board, LCD Driver, and any other serviceable parts.
  7. The CCFL Backlight in this LCD display works on very high voltage. Be careful around exposed boards and capacitors.
    8. Step image
