2014 Cadillac ATS LED Door Projection Lamp Replacement

ID: 199360

Description: This guide demonstrates how to upgrade or...

Steps:

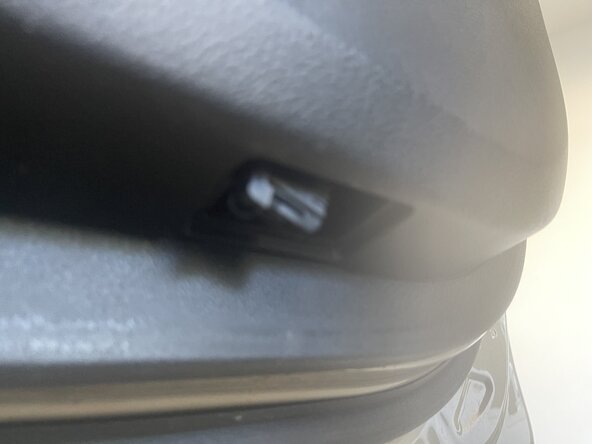

1. With the door fully open, kneel to view the panel's underside beneath the map pocket. Run your hand along the bottom edge to locate the rectangular lens flush with the trim; this is the unit you will replace.

2. Pry out the existing LED projection lamp from the car door.

3. Carefully disconnect the power cable connector from the LED projection lamp.

4. Connect the new LED projection lamp to the power cable connector.

5. Be sure to correctly align the LED projection lamp housing unit with the power cable connector.

6. Properly replace the LED projection lamp in the space in the door.

7. Test the LED projection lamp by closing and opening the door.
