2003-2009 Toyota Prius Headlight Bulb Replacement

ID: 206736

Description: If the headlights on your 2nd generation Toyota...

Steps:

1. Open the hood of the car by pulling on the latch with the symbol near the pedals on the driver's side.

2. Place your hand under the slightly open hood, a little to the right of the Toyota logo.
3. Feel around for a latch, then pull it up and lift the unlocked hood.

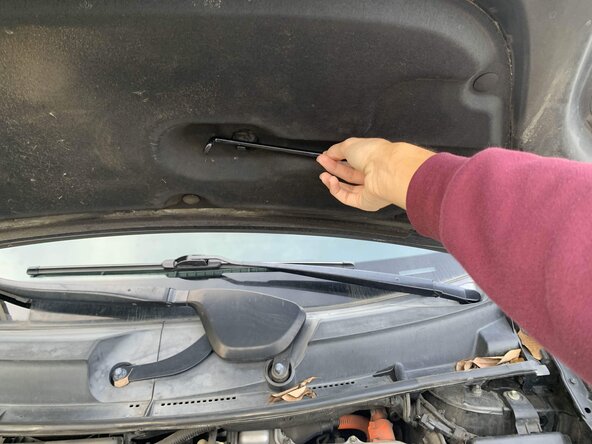

4. While holding the hood up with your left hand, use your right to pull out the prop rod from its underside.
5. Place the nub from the bottom of the rod into the holder near the fuse box, then slide it down to secure it.
6. There is an arrow on the fuse box to help locate it.

7. Remove all screws on the front plastic panel with a #2 Phillips head screwdriver by rotating counterclockwise.
8. Once removed, simply grab the panel and pull it out.

9. Starting on the passenger side, remove the plastic intake extension in front of the fluid tank.
10. Some cars may have a fastener holding it down. If yours does, use a flathead screwdriver to place under its lip and pull it out.

11. Behind the headlight housing, there is a rubber cap with wires sticking out.
12. Firmly grasp the cap by its tabs, then rotate counterclockwise and pull back once loose.

13. Behind the cap is an electrical plug. Pull it out from the light housing.
14. Place the cap and plug somewhere secure so they don't drop down into the engine bay.

15. On each side of the bulb, there are metal clips holding it in place.
16. Push into these clips, which will release the bulb, then grab it and take it out.
17. Be careful not to drop the bulb. Keep the palm of your hand closely behind it when removing.

18. Place the new bulb into the slot by aligning the notches and pulling the clips out into their farthest position.
19. Once in, push the clips back down onto the bulb to secure it. It should no longer be loose when letting go.
20. Do steps 5-7 in reverse to reassemble everything else.

21. For the driver side, remove the fuse box cover to make it easier to reach the headlight.
22. Repeat steps 6-9 to replace headlight bulb for the driver side.
23. Reinstall the front panel and close the hood.
