2002-2007 Jeep Liberty Windshield Wipers Replacement

ID: 212685

Description: If you found yourself praying that it doesn't...

Steps:

  1. Make sure your car is turned off.
  2. Ensure the parking brake is engaged.
  3. Step image
  4. Lift the wiper arm up.
  5. Don't yank your windshield wiper blade; pull it back and up.
  6. Step image

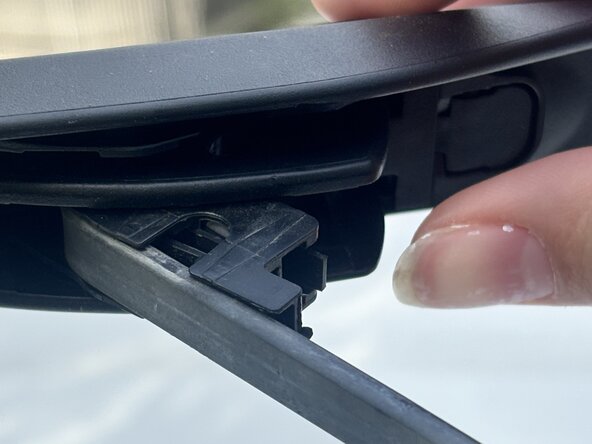

  7. Insert your nail under the locking mechanism.
  8. It should be easy enough to pry open with your finger/fingernail. Use keys or anything of that shape if it doesn't come loose easily.
  9. Step image Step image Step image
  10. Slide the wiper blade down and away from you.
  11. This should dislodge it immediately, if not, push the blade up and then slide it down.
  12. Step image Step image Step image
  13. Take your new windshield wiper, blade side facing towards the ground and slide it up into the wiper arm.
  14. It doesn't make a clicking noise, so when you have finished this step, gently pull and prod the wiper to make sure it stays in place!
  15. Step image
  16. Once it's properly latched, push the wiper back down.
  17. Step image
  18. Repeat with your other windshield wiper, because if one stops working, the other is bound to be next.
  19. Step image
