Bissell 3-in-1 Turbo Brushroll Cleaning/Replacement

ID: 213178

Description: This guide will walk you through the simple...

Steps:

1. Unhook the powerhead from the main body with the grey latch on the underside and pull to detach it.
2. Make sure you are not connected to a wall plug and that your power switch is off.

3. Use Phillips #2 screwdriver to remove all eight screws on the underside of the powerhead.
4. Carefully separate the top and bottom halves of the powerhead.
5. The grey plastic hinges may come off of both halves of the powerhead - don't worry! They are easily reattached.

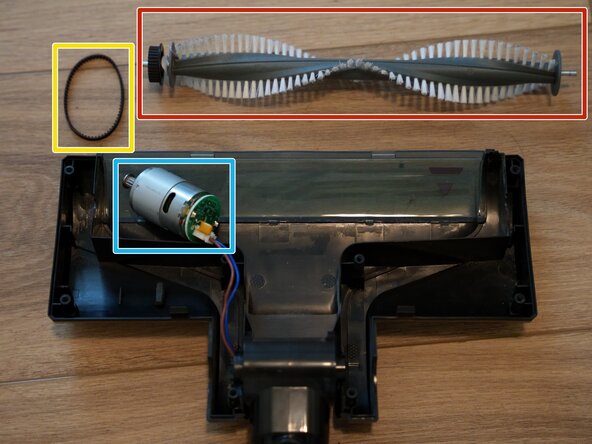

6. Take note of the main components inside the powerhead: the brushroll (red), the rubber track (yellow), and the motor (blue).
7. Clean any dust, hair, or other debris from both the brushroll and the internal casing of the powerhead.

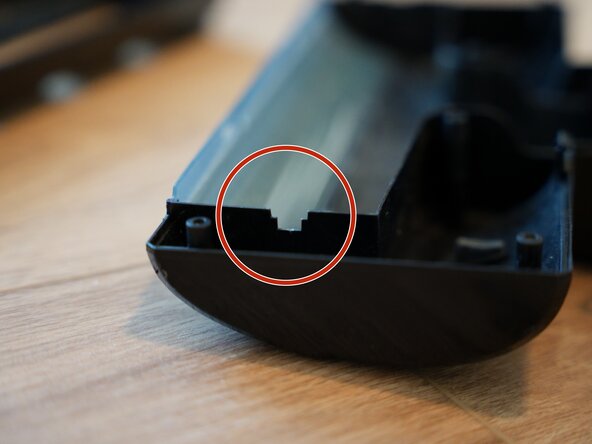

8. Reseat the brushroll into the notches it came out of.
9. Wrap the rubber track both around the black gear teeth on the brushroll as well as the small metal gear of the motor.

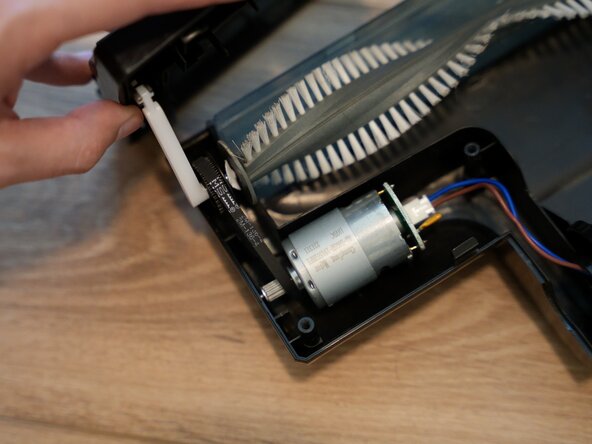

10. Connect the smaller end of each plastic hinge to the notches on either side of the holed half of the powerhead.
11. Connect the other end of each hinge to each side of the brushroll.

12. Lower the wheeled half of the powerhead into place and snap it shut.
13. Screw all screws back into the underside of the powerhead.

14. Reconnect the powerhead to the main body of the vacuum.
