2003-2007 Honda Accord Third Brake Light Replacement

ID: 219902

Description: This guide will help you replace the center...

Steps:

  1. Pull the trunk lever inside the car located near the bottom left of the driver's seat to open the trunk.
  2. This will grant you access to the trunk interior to start step 2.
  3. Step image Step image Step image

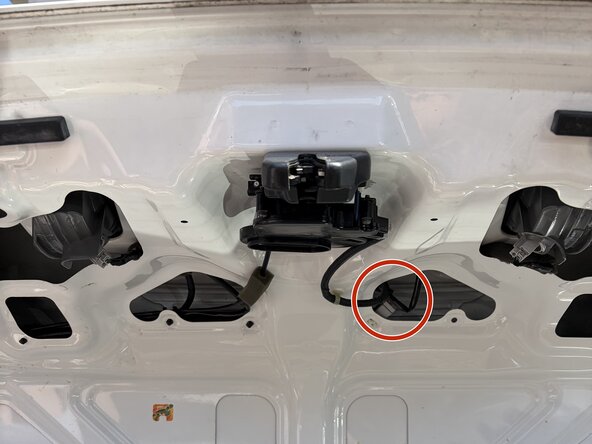

  4. Take notice of where the brake light connection is.
  5. Step image Step image
  6. Find the connector, pinch both sides and pull apart to unplug the connector.
  7. Step image Step image Step image
  8. Attach the 8mm socket to the ratchet and loosen each bolt by twisting the ratchet in a counterclockwise direction.
  9. Step image Step image Step image

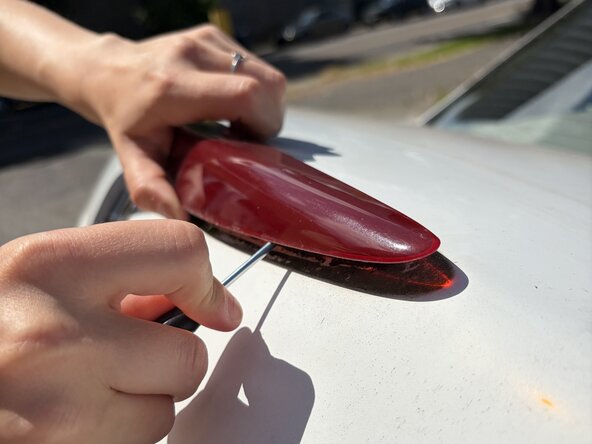

  10. Once all the nuts are removed from the bolts of the brake light, remove the old brake light with a small flathead screwdriver.
  11. When using a flathead screwdriver, be careful not to poke yourself.
  12. Step image Step image Step image
  13. Clean off the remaining old seal.
  14. You can use wet wipes, paper towels, or any cleaning devices of your liking.
  15. Step image
  16. Take the new brake light and insert the brake plug into the location of your old brake light.
  17. Step image Step image Step image
  18. Use your ratchet wrench to screw the nuts onto the bolts of the new brake light.
  19. Step image Step image Step image
  20. Connect the new brake light plug to the power connection.
  21. Step image Step image Step image
  22. Check to ensure brake works.
  23. Step image Step image
