Lenovo IdeaPad 700 Thermal Paste Replacement

ID: 220720

Description: This guide will show you how to open the laptop...

Steps:

  1. Unscrew all screws holding the back panel in place.
  2. Use a prying tool to remove the back panel.
  3. Unscrew the screws holding the CPU heatsink and disconnect and unscrew the fan.
    4. Step image Step image Step image

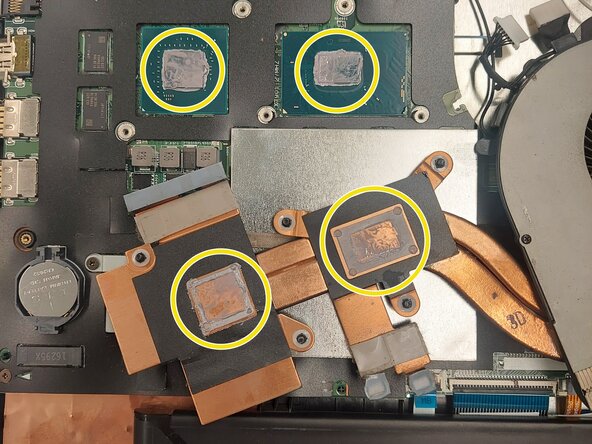

  4. Clean the old thermal paste from both the cooler, the CPU and GPU.
  5. Use isopropyl alcohol and cotton swabs or paper towel, but be careful not to press too hard.
  6. It's also recommended to use compressed air to remove any dust in the laptop and the fan.
  7. Use only enough thermal paste to cover a portion of the pad. Use a spreader if you have one.
  8. The thermal paste will apply evenly after you tighten the heatsink.
  9. Place the heatsink back into the unit carefully and tighten the screws in an "X" pattern to ensure even pressure. Don't forget to plug in the fan cable.
    10. Step image Step image Step image

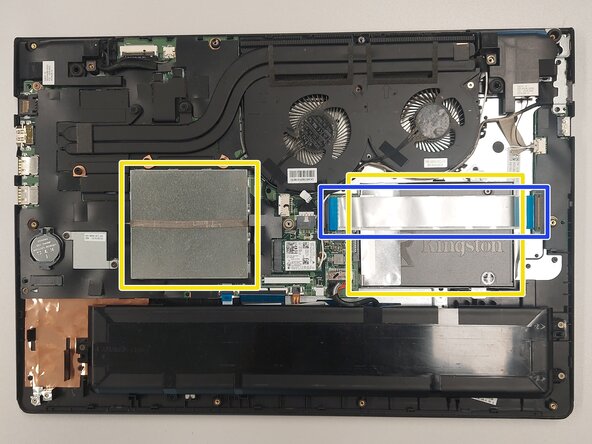

  10. Once you have the back cover opened, it is a good opportunity to upgrade the SSD and RAM.
  11. To upgrade the SSD you have to disconnect the ribbon cable.
    12. Step image
