Black and Decker JE2200B Disassembly

ID: 49979

Description: Before using this device, make sure you learn...

Steps:

  1. To undo the locking latches: Pull outwards at the bottom of each latch to detach them from the groove on the cover .
    2. Step image Step image
  2. To remove the cover: Take out the feeder, hold the chute firmly and pull up the cover.
    3. Step image Step image
  3. To remove the pulp container: Hold the juice spout with one hand and the back edge of the pulp separator with the other hand. Pull it up while making sure that the cutter/strainer is kept in place
    4. Step image

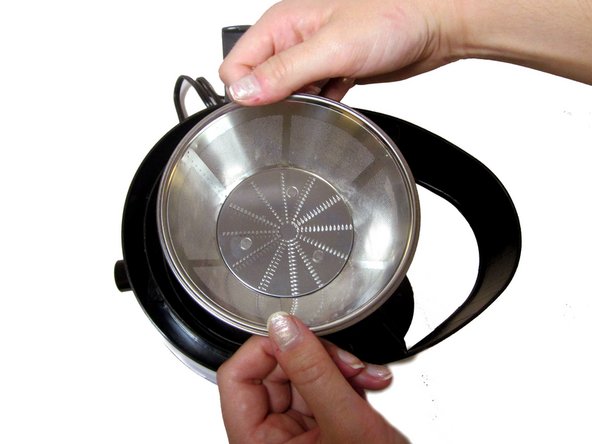

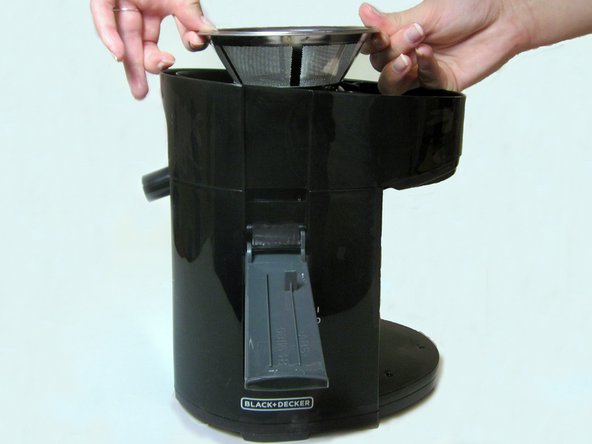

  4. To remove the cutter/strainer: Hold the juice spout with one hand and clutch the edge of the cutter/strainer with the other hand; pull it out slowly.
  5. ' The teeth on the cutter/strainer are very sharp. '
    6. Step image Step image Step image
  6. To remove the pulp separator: Hold the sides firmly and pull the container out.
    7. Step image
