Samsung NX3000 LCD Replacement

ID: 56601

Description: This guide will show you how to remove the LCD...

Steps:

  1. Turn the camera upside down. Only remove the lens if you have to in order to access the battery compartment, as dust particles could easily enter the main body and fall onto the delicate sensor.
  2. Slide the button to the left to open the battery compartment.
  3. Push the blue button up to release the battery.
  4. The battery is not shown in these photos.
    5. Step image Step image Step image
  5. Remove the four 7.3 mm Phillips screws from the front of the lens assembly.
  6. Remove the silver ring with tweezers.
    7. Step image Step image
  7. Use tweezers to remove the black plastic ring and small metal ring inside the lens assembly.
    8. Step image Step image
  8. Use tweezers to lift the pyramid screw and spring from the lens assembly.
    9. Step image Step image Step image
  9. Remove the three 4.3 mm Phillips screws from the bottom of the camera.

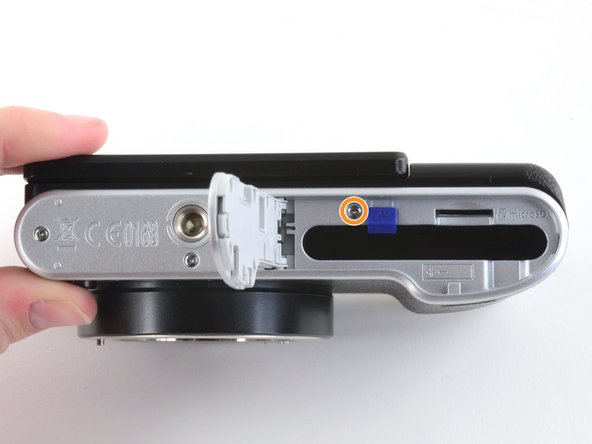

  10. Remove the 4.3 mm Phillips screw hiding inside the battery compartment.
    11. Step image Step image
  11. Remove the 4.2 mm Phillips screw from the left handgrip.
  12. Remove the two 4.2 mm Phillips screws from the right handgrip.
    13. Step image Step image
  13. Use tweezers to remove the metal shield from the external flash mount.
    14. Step image Step image
  14. Remove the four 5 mm Phillips screws from the external flash mount .
    15. Step image
  15. Remove the external flash mount.
    16. Step image Step image
  16. Slowly pull the bottom of the back case away from the camera.
  17. Do not attempt to remove the back case as it is attached to the motherboard by a ribbon cable.
    18. Step image Step image
  18. Use the flat end of a spudger to pry the flat topped connector straight up from the motherboard.
  19. Remove the back case.
    20. Step image Step image Step image

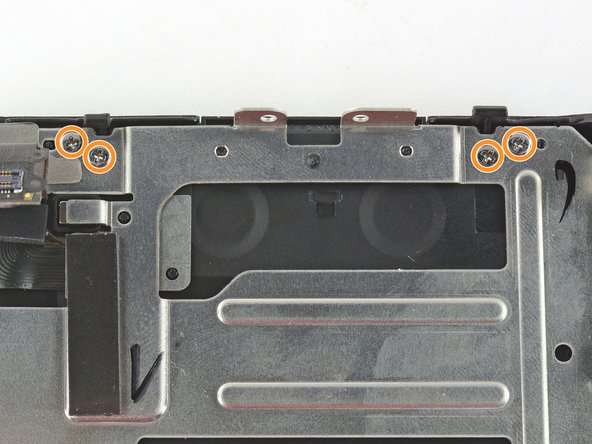

  20. To remove the metal shield on the back case, remove the following screws:
  21. Five black 4.2 mm Phillips screws .
  22. Four silver 5.3 mm Phillips screws.
    23. Step image Step image Step image
  23. Insert the pointed end of a spudger into the whole on the ribbon cable holding the button panel to the back case.
  24. Remove the button panel.
    25. Step image Step image Step image
  25. Use a spudger to peel back the LCD ribbon from the back case.
  26. The ribbon is held in place by adhesive.
    27. Step image Step image

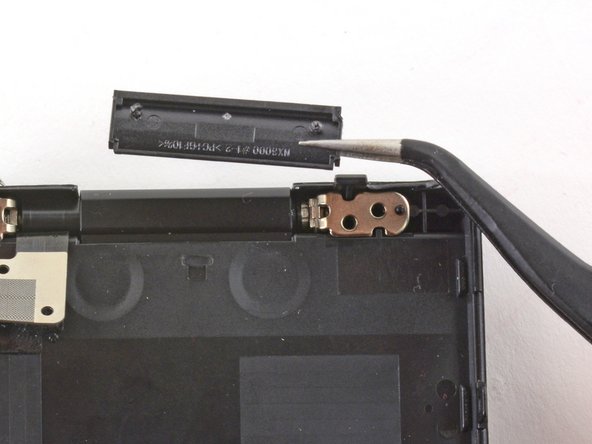

  27. Use tweezers to remove the plastic cover on the LCD hinge.
    28. Step image Step image
  28. Tilt the LCD so it lays flat against the back case.

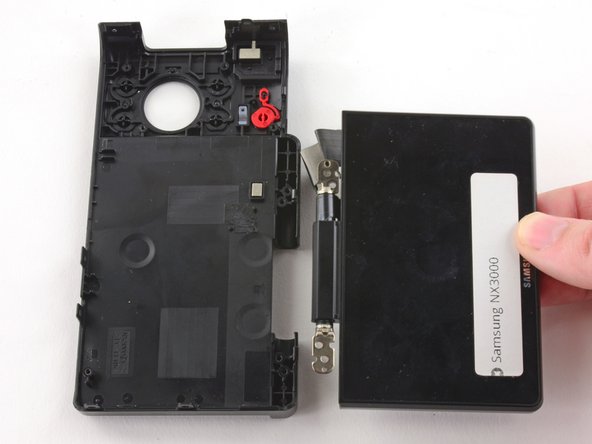

  29. Wiggle the LCD joints and pull the LCD away from the back case.
    30. Step image Step image
