Palm m105 Motherboard Replacement

ID: 6922

Description: Make sure you have a replacement board before...

Steps:

1. Start with your intact Palm m105.

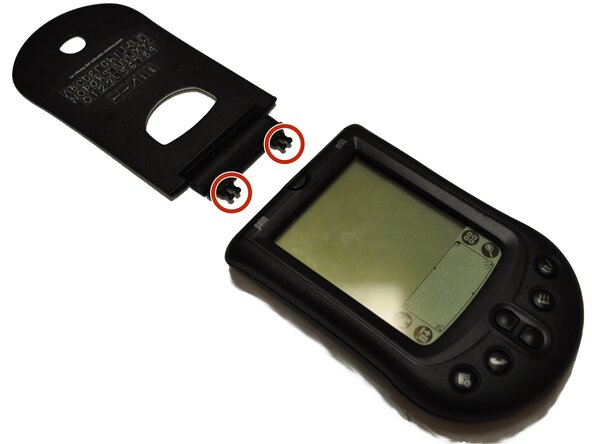

2. Remove protective flap by pulling directly out from the top.
3. The two clips will pop out.

4. Remove Faceplate. There is a tab where the finger is located in the picture that needs to be pulled up.
5. The Faceplate will then easily lift off.

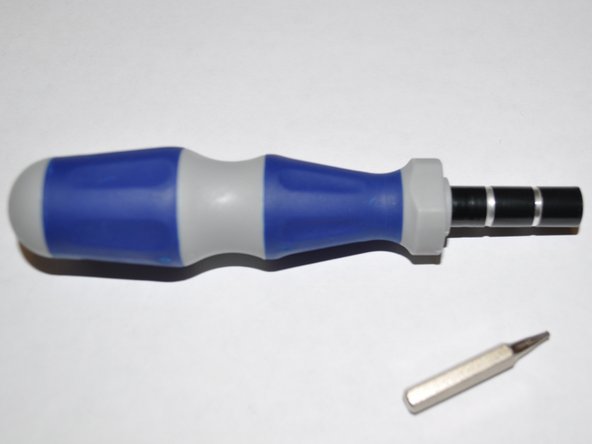

6. Using a T5 Torx bit screwdriver, remove the four screws located on the back of the device turning counter clockwise.
7. The link to purchase this screwdriver is Located here.

8. This is what the device looks like once you have taken the screws out and opened the device.

9. The Motherboard and screen will pop out of the back case easily.
10. Be careful when doing this step, the components are fragile.

11. To remove the screen from the motherboard there are going to be three tabs that need to pulled up.
12. This step needs to be done with special care because it is very fragile.
13. Once they are all three popped up the motherboard and screen will separate easily.

14. Click here for Palm m105 motherboard replacement
15. Now that the screen and motherboard are separated you may discard the broken screen. The best way to dispose of the broken screen is to: Recycle it
