Sony Ericsson W580i SIM Card Replacement

ID: 6924

Description: Use this guide to remove or replace your SIM card.

Steps:

  1. Hold the phone with the screen facing down. Push the back cover firmly down and slide it towards you.
  2. The panel will slide down about 2mm.
  3. Lift the panel away from the phone.
  4. Step image Step image Step image
  5. Lift the battery out from the bottom edge.
  6. Step image

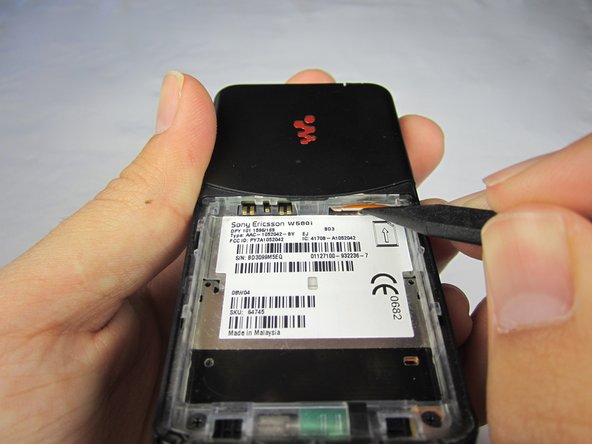

  7. Locate the SIM card slot.
  8. Use a spudger to release the SIM card by pushing it in slightly until you feel a "click."
  9. Release pressure from the SIM card. The SIM card will pop out about 5mm.
  10. Step image Step image Step image
  11. Slide the SIM card down out of the slot.
  12. Remove the SIM card from the phone.
  13. Step image Step image
