Nokia N70 Speaker Replacement

ID: 7001

Description:

Steps:

1. Orient the phone as shown.
2. Press the button with the plastic opening tool and slide the back case downward relative to the phone.

3. Remove the battery cover by lifting it away from the phone.

4. Insert the plastic opening tool into the marked space.
5. Lift up the side of the battery closest to the bottom edge of the phone using the plastic opening tool.

6. Remove the battery from the phone.

7. Insert the plastic opening tool in the marked areas in between the front and back covers.
8. Pry each corner with the plastic opening tool until the front case completely detaches.

9. Orient the phone so that the keypad is facing you.
10. Remove the keypad by lifting it away from the phone.

11. Use the T6 Torx screwdriver to remove the six 15 mm Torx screws.

12. Lift the bottom edge of the front panel at a 45 degree angle.
13. Remove front panel by slowly pulling it away from the phone at a 45 degree angle.

14. Locate the speaker location located on the back panel of the phone.

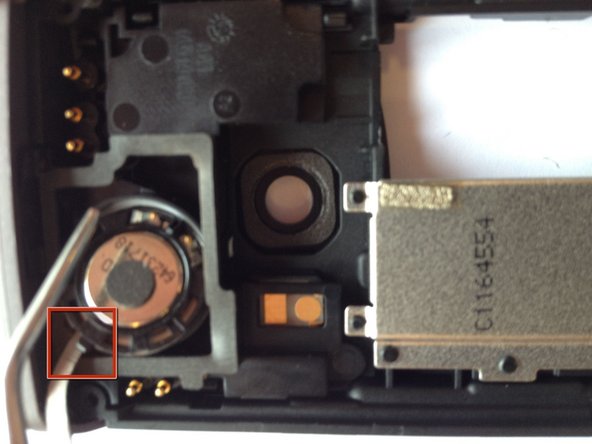

15. Using the tweezers place one side of tweezers in the rectangular slot where the speaker is located

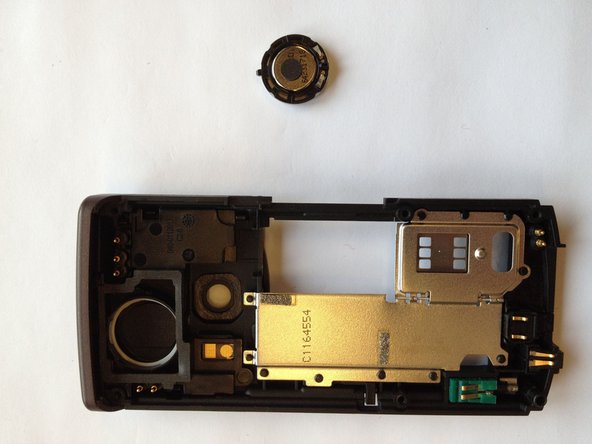

16. Slowly lift speaker away from the back panel.
