Olympus SP-320 Back casing and LCD screen Replacement

ID: 74852

Description: This guide will show you how to take apart and...

Steps:

1. Remove the 3 mm long screws with a Phillips head screwdriver that has a PH000 size bit.

2. Remove the 3 mm long screw using Phillips head screwdriver that has a PH000 size bit.

3. Pry the outer case open using a blue, plastic opening tool.

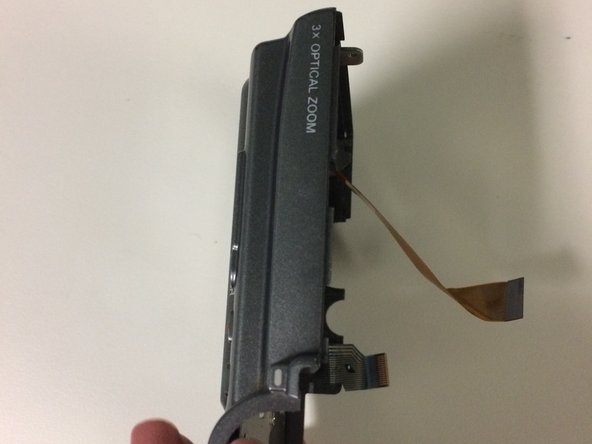

4. Pry case open gently to avoid tearing the ribbon that connects the front part of the case to the back of the case.

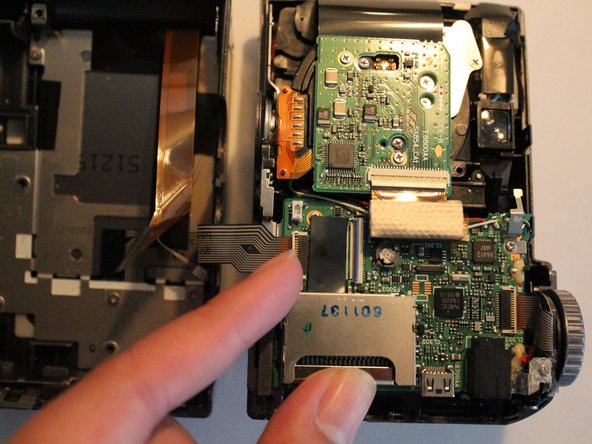

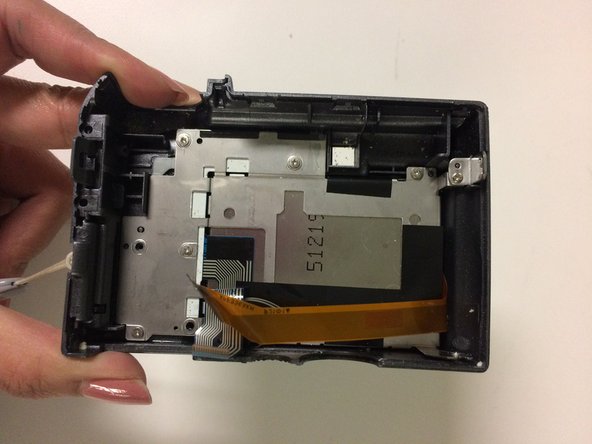

5. Detach camera body from back casing and LCD screen.

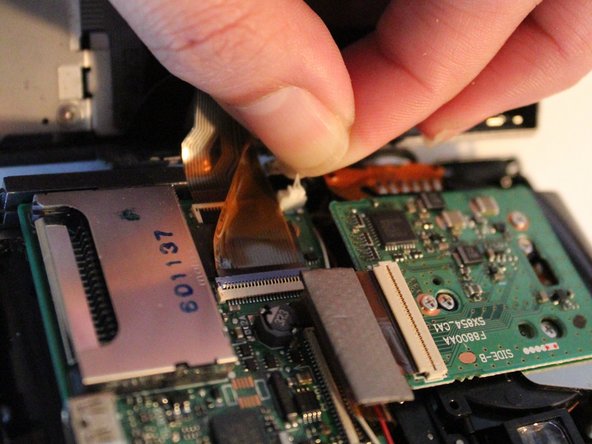

6. Pull gently on the white connecting cable to detach it from the main body of the camera.
7. Lift the small, plastic clip, detaching the ribbon from the main body of the camera.

8. You have detached the back casing and LCD screen.
